ms3OptionsColor
Swatches for miniShop3 options: HEX, patterns, images, and RAL Classic
- MODX 3
- PHP 8.2
- miniShop3
- Vue 3
ms3OptionsColor
With ms3OptionsColor you assign a color, pattern, or RAL to miniShop3 option values and show swatches on the storefront, in select, in filters, and in the cart. The dictionary is shared: one option_key + value pair for the whole catalog. Assign color=Синий once and the same swatch appears on every product with that value.
Start here: Quick start.
Features
Manager

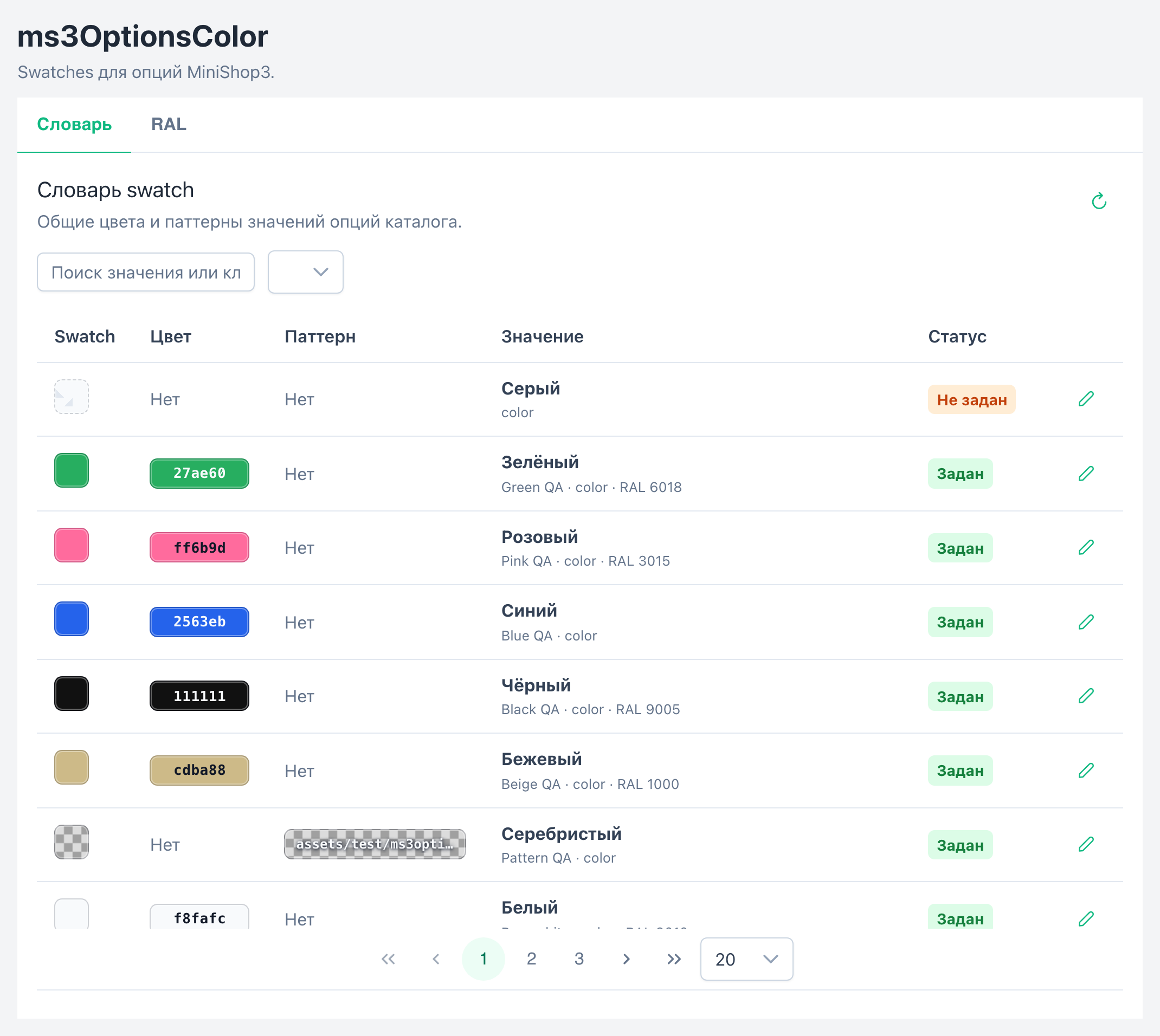

CMP on Vue 3 and PrimeVue (via VueTools): Dictionary and RAL tabs. Search by key and value, status filter, HEX / pattern / RAL dialog.

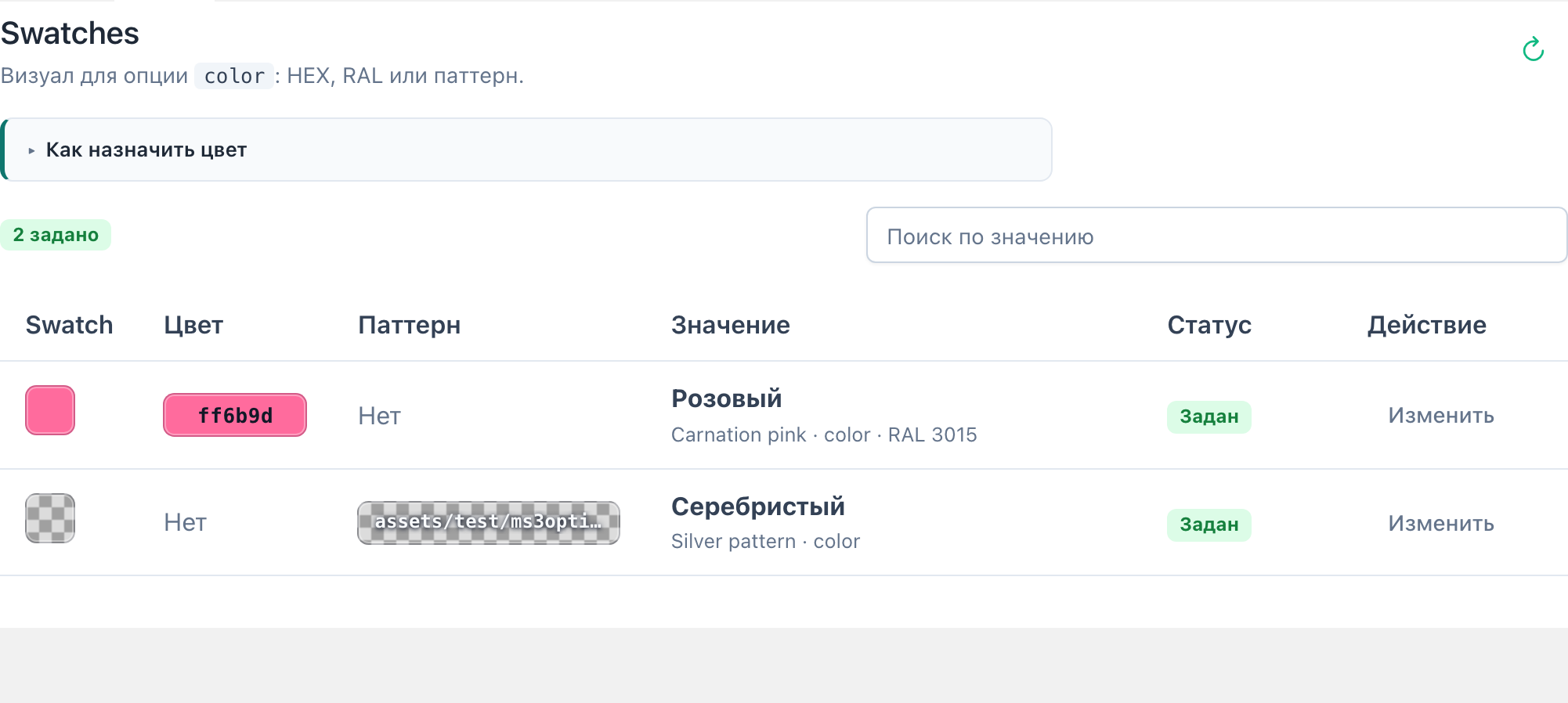

On the product card, the Swatches tab sits next to Product properties. Set option values first, then assign swatches. On option chips the script draws a color square.
Storefront
Snippet ms3OptionsColor and Fenom chunks. Storefront CSS loads automatically when ms3optionscolor_frontend_css is enabled. Select with swatch works via Select2 or a plain <select>.
mFilter and ms3variants

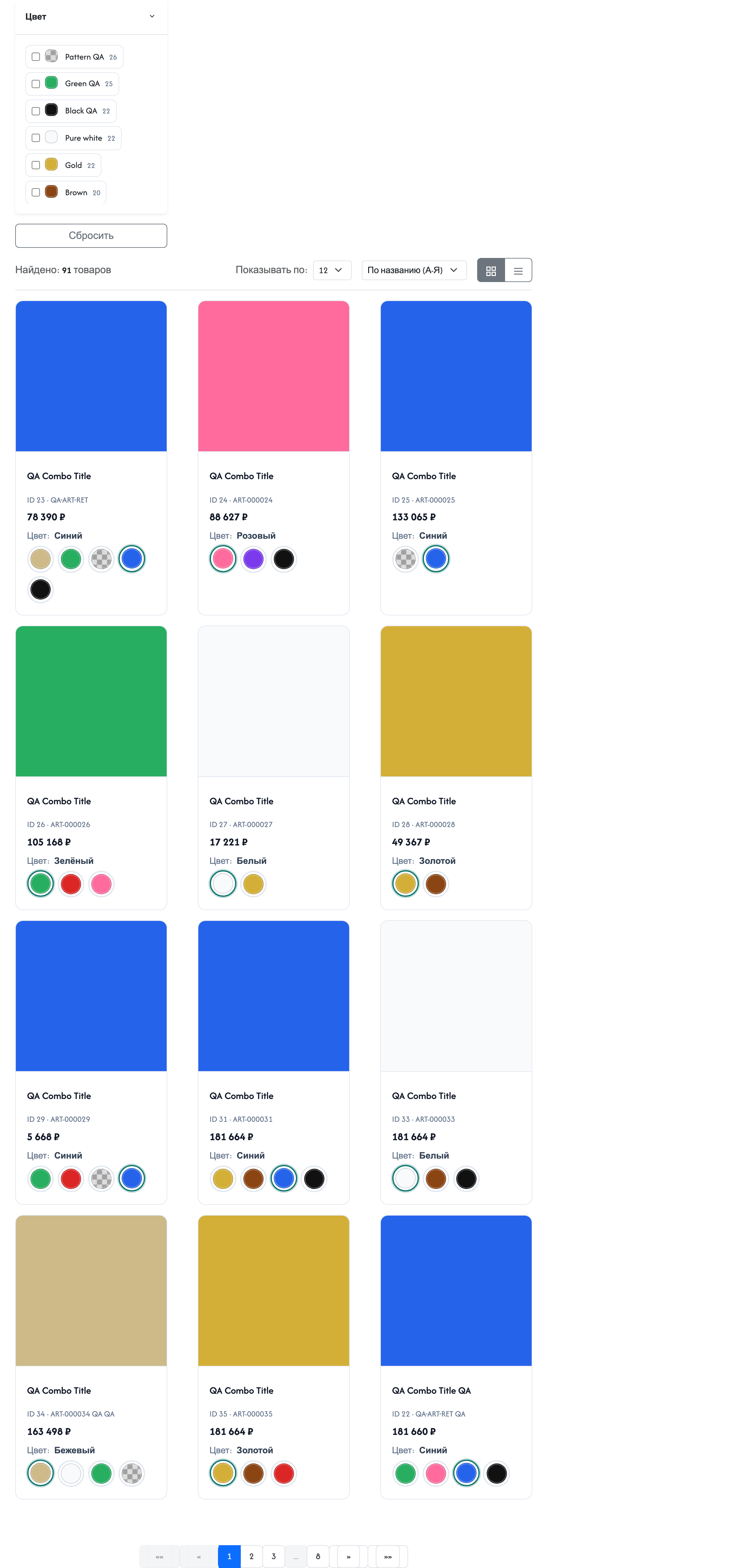

Filter type ms3oc renders swatches from the dictionary and does not replace the built-in colors type. With ms3variants, catalog variants can show colors from the dictionary. Details: mFilter, ms3variants.
Requirements
| Component | Version |
|---|---|
| MODX Revolution | ≥ 3.0.3 |
| miniShop3 | cart, product options, manager API |
| VueTools | ≥ 1.1.2-pl |
| pdoTools | 3.x |
| PHP | ≥ 8.2 |
| mFilter | optional, for ms3oc filter type |
| ms3variants | optional: variant colors in the catalog |
Installation
- Install ms3OptionsColor via System → Package Management.
- Clear the MODX cache.
- Make sure the manager role has
msproduct_save(same as saving a miniShop3 product). The package does not create its own ACL keys. - Open Extras → ms3OptionsColor. The dictionary should open without a blank screen or VueTools errors.
On install the package prepares the database for the color dictionary and RAL Classic, adds the manager menu item, and enables the plugin for the product tab, storefront styles, and filter. Step-by-step with the first swatch: Quick start.
Package elements
| Type | Name | Purpose |
|---|---|---|
| Snippet | ms3OptionsColor | Swatches, option for select, return=data |
| Plugin | ms3OptionsColor | Product tab, storefront CSS, mFilter, variant colors in the catalog |
| Chunks | tplMs3OptionsColor* | Storefront, select, cart, mFilter |
| Menu | ms3OptionsColor | Dictionary and RAL CMP |
Next steps
| Task | Section |
|---|---|
| First swatch in 15 minutes | Quick start |
ms3optionscolor_* keys | System settings |
| Select, cart, CSS/JS | Frontend |
| Snippet parameters and chunks | Snippets |
Catalog filter ms3oc | mFilter |
| Variant colors in the catalog | ms3variants |
| CMP and product tab | Manager overview |
| Flows A–I with screenshots | Flows |
| Dictionary and plugin events | Events |
| Common errors | FAQ |
